8 Inch Touch Screen Biometric Attendance System Face Recognition Facial Reader Attendance Machine
Facial recognition time and attendance terminal with touch screen,which is a convenient and safe visual face recognition terminal. The products can be used in smart communities,access control channels,face attendance,hotels,office buildings,schools,shopping malls and other places,which helps to achieve intelligent security control
Main Features:
1. Support Real Time Human Body Detection
2. 8-inch IPS touch screen,resolution 800*1280
3. Support for human face tracking exposure in strong backlighting
4. Support device side registration of faces and configuration of device functions
5. Support 24,000 face users and 160,000+ face recognition records.
6. The device supports connect to an external access control host or Wiegand reader through the international standard Wiegand
7. Support multi-language:English,Chinese,Spanish,Portuguese,French,Italian,Japanese,Korean,Slovak,Polish,Thai ect
Technical specification:
| Model | B2002FR-8I-TS-WM |
| Hardware | Hi3516D CPU+1G memory+16G flash |
| Processor | Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash |
| Operating system | Linux Operating system |
| Viewing angle | Vertical viewing angle: 30°;Horizontal viewing angle: 30° |
| Sensor | 1/2.8" Progressive Scan CMOS |
| Lens | 6mm |
| 4G module | Optional customization functions (not by default ) |
| Wifi module | 802.11 b/g/n optional (not by default ) |
| Touch screen | Support capacitive single touch screen |
| Speaker | voice playback content can be customized |
| Performance | |
| Recognition height | 1.2~2.2 meters,angle adjustable |
| Recognition distance | 0.5~1.5 meters,depends on lens |
| Recognition time | Less than 0.5 second |
| Storage capacity | 160,000+ capture records |
| Face capacity | 24000pcs |
| Screen brightness | ≥400cd/m2 |
| Switching output | 1 way switch output,other GPIO port can be customized |
| Network interface | 1 RJ45 10M / 100M adaptive Ethernet port,Gigabit Ethernet port can be customized |
| Wiegand interface | 1ch Wiegand interface input/output |
| RS485 | 1ch |
| Camera | 2MP CMOS CAMERA |
| Camera | Two cameras |
| Effective pixels | 2MP,1920*1080 |
| Min Illumination | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) |
| SNR | ≥50db(AGC OFF) |
| WDR | 110db,ISP algorithm face partial exposure |
| Function | |
| Web side configuration | support |
| remote upgrade | support |
| Regular | |
| Operating temperature | -30℃ - +60℃ |
| Working humidity | 0～90%relative humidity, no condensation |
| Salt spray | level Rp6 or above |
| Antistatic | contact ±4KV, air ±8KV |
| Power | DC12V/3A |
| Waterproof | IP65 |
| Power | 20W(MAX) |
| Equipment size | 252 (length) * 136 (width) * 26 (thickness) mm |
| Screen size | 8 inch IPS touch screen |
| Weight | 1.7 kg |
FAQ:
Q: Do you sell at retail?
A: Sorry,we are factory and it’s need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.

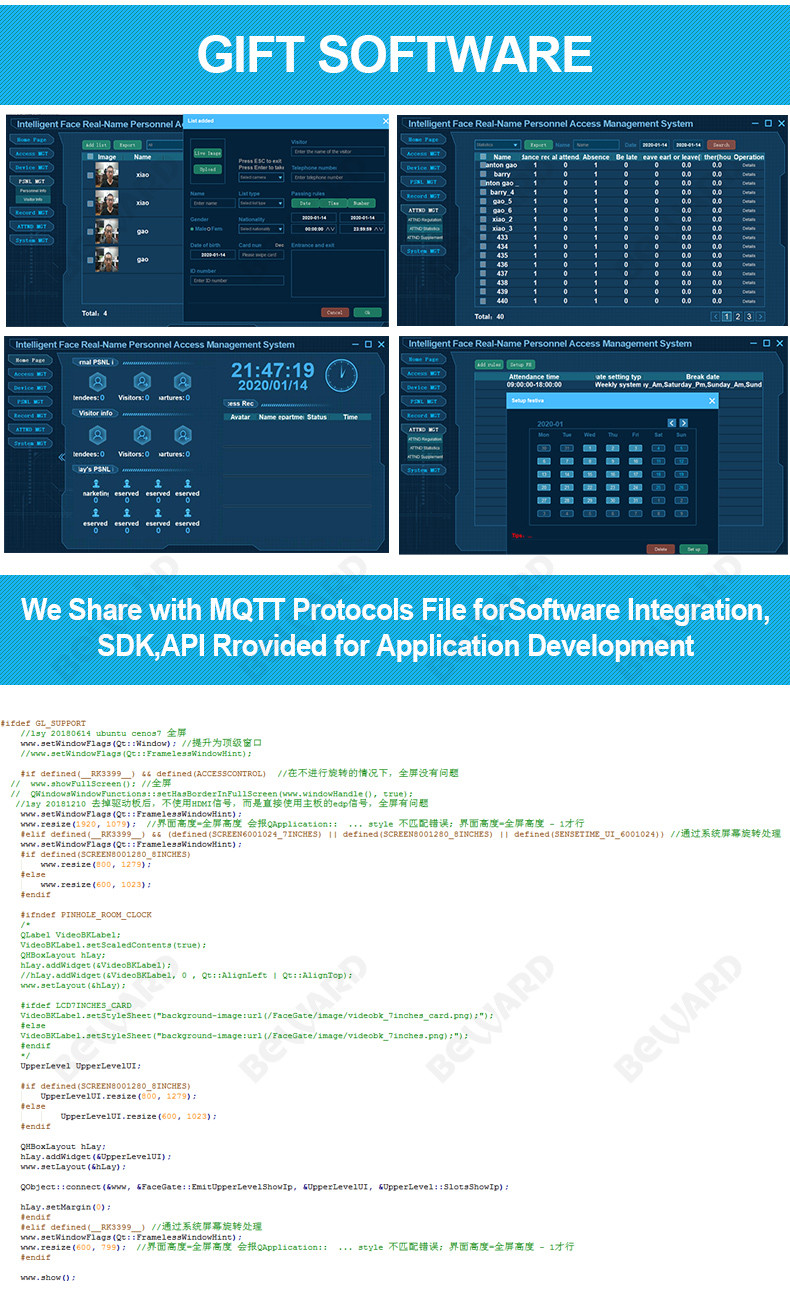

Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
